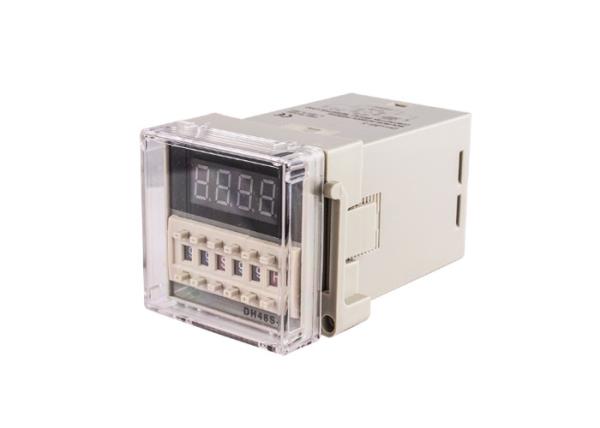

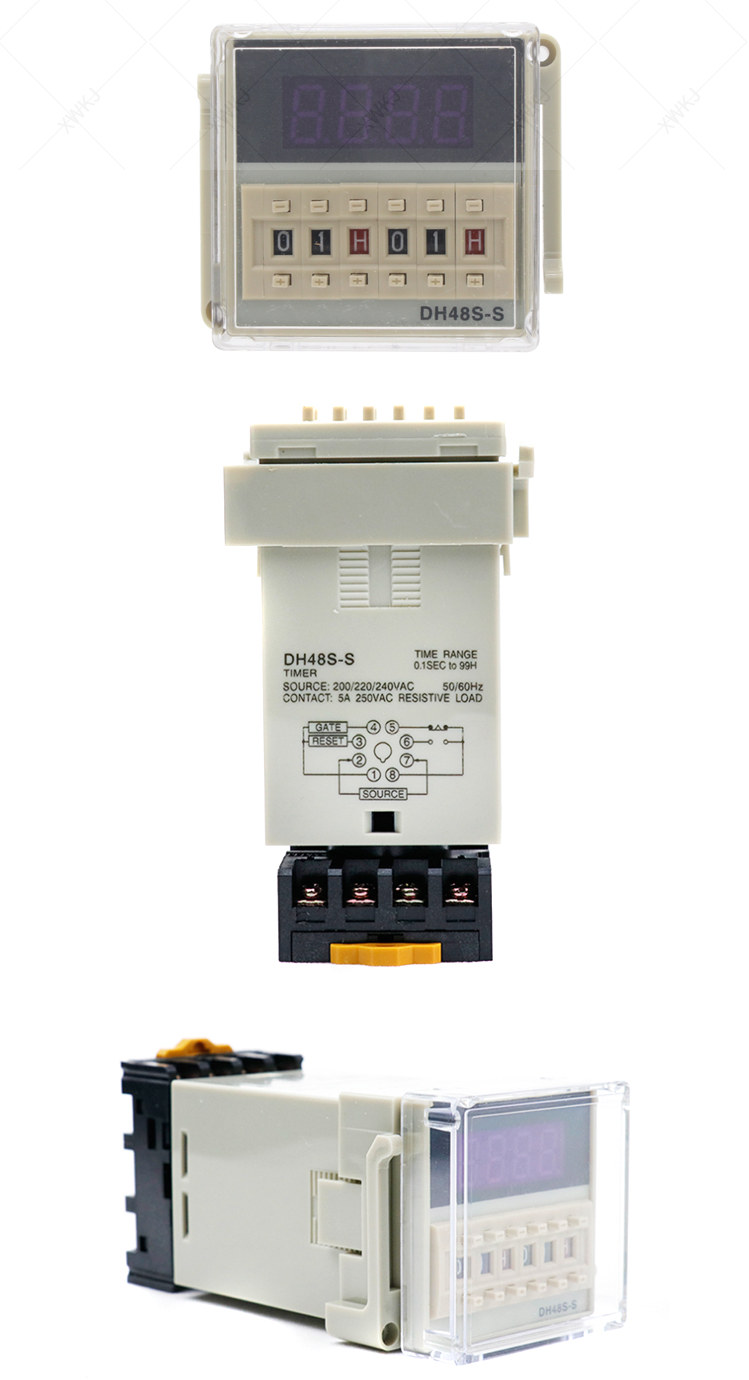

DH48S-S 0.1s to 99h 220VAC 24VDC Digital time delay repeat cycle timer relay with base

Product Categories

Ji An Xiewei Technology Co., Ltd

Contact Now

Name: DH48SS 01s to 99h 220VAC 24VDC Digital time delay repeat cycle timer relay with base
Brand: Customized
Price: 3.75 USD

Brand Name : Customized

Model Number : DH48S-S repeat cycle timer

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : Western Union, T/T,Paypal,Aliexpress

Delivery Time : 3-15 working days

Packaging Details : Standard Export Package

Price : $3.75-$6.48/ Piece

Product name : DH48S-S time relay with base

Working voltage : 12VAC/DC,24VAC/DC,36VAC/DC,110VAC/DC,220VAC/DC,380VAC/DC,24-240VAC/DC

Time range : 0.1S-99H

Mounting type : Din Rail

Contact Now

Technical Specification

Model	DH48S-S
Working voltage	220VAC/24VDC 50/60Hz
Rated current	5A
Working power consumption	≤3W
Measuring range	0.1s--99h
Ambient tempeature	-20℃~+50℃
Altitude	<2000m
Mechanical life	20 million times
Protective characterustucs	Dust-proof cover type

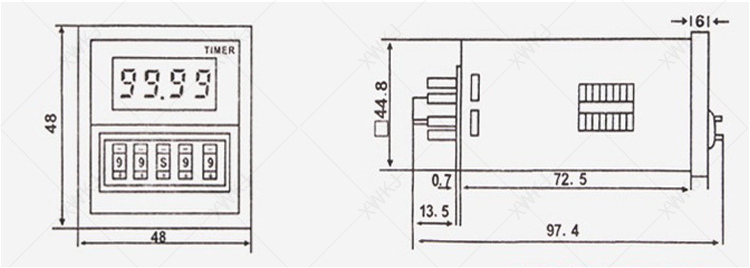

Outline Dimension	484895mm
Product characteristics	Reset function
	Accurate timing control
	Suspension function
	Long delay
	Infinite cycle
	Pure copper transformer
